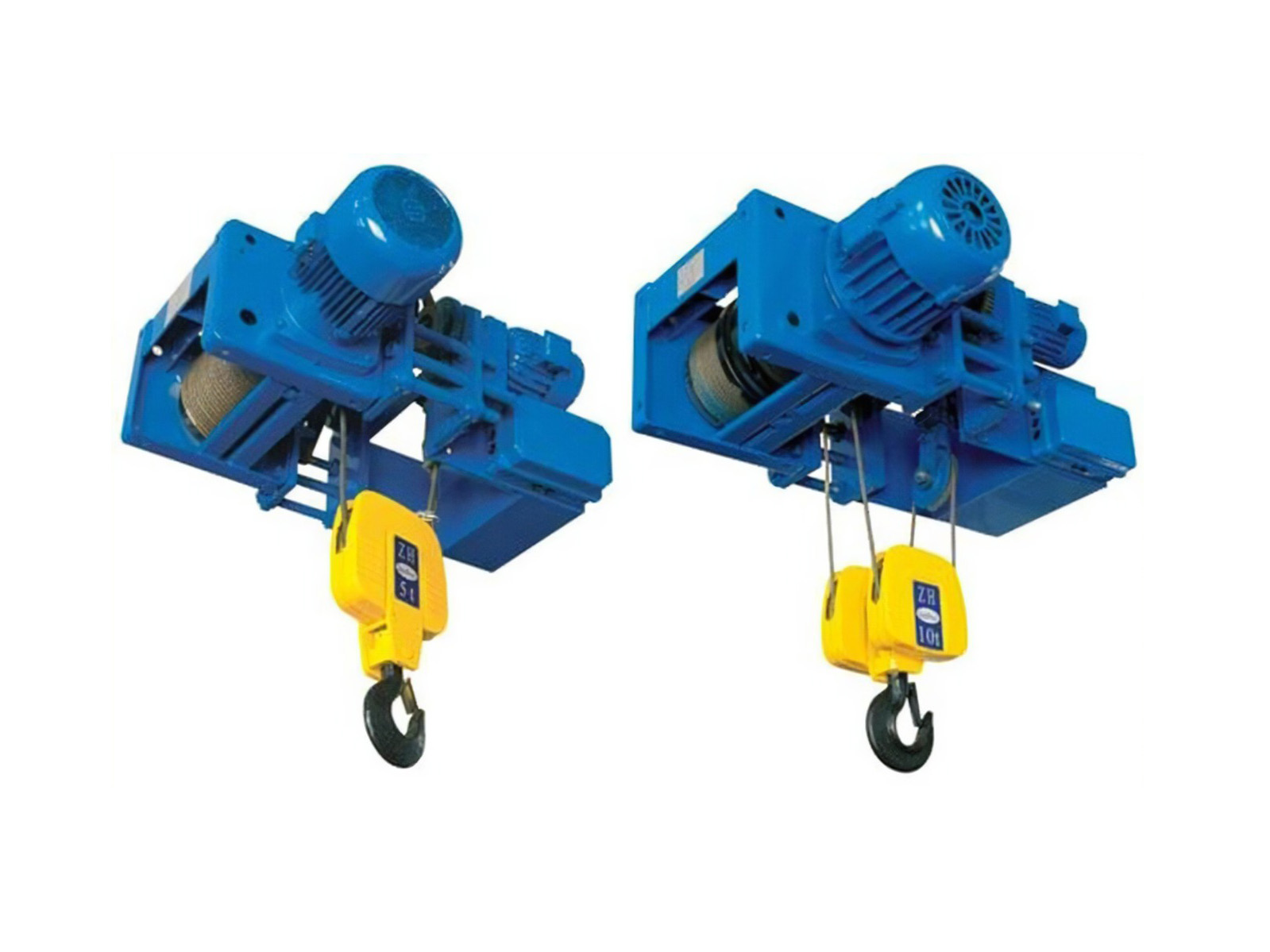

Low clearance electric hoist

The low clearance wire rope electric hoist is particularly suitable for factories or usage sites where the clearance height is limited, and can be used to maximize the effective lifting height.Low clearance steel wire rope electric hoist parameters: model Lifting capacity(t)Increase speed（m/min）running speed (m/min)Work level Pulley ratio Increase motor power(kw) c a1a2 b hmin s l n.w(kg) hi 6h9h 12h 18h 24h sha21.6 8.0/1.2 15.8/5 m5 2/1 2.5/0.37 100-500 94-180378 297 430 917 0.0198h 805 925 1040 1258 1497 320 3.2 4.0/0.6 15.8/5 m5 4/1 2.5/0.37 378 297 430 960 1040 1258 1497 326 sha3 2.5 8.0/1.2 15.8/5 m5 2/1 4.9/0.8 116-450 116-180 400 329 525 1014 0.0212h 823 950 1077 1331 1575 450 5 4.0/0.6 15.8/5 m5 4/1 4.9/0.8 400 329 525 872 1077 1331 1576 470 sha4 6.3 10/1.6 15.6/5 m4 2/1 12.5/2.0 142-500 142-500 475 458 688 888 0.0192h 918 1038 1152 1381 1612 470 12.5 5.0/0.8 15.6/5 m4 4/1 12.5/2.0 475 458 688 897 1150 1381 1612 1200

HOTLINE：15824870399

worry-free after-sales

Factory Direct Sales

Service Support

Customized Solution

Message Contact

Introduction

Advantages

Application

Introduction

The low clearance wire rope electric hoist is particularly suitable for factories or usage sites where the clearance height is limited, and can be used to maximize the effective lifting height.

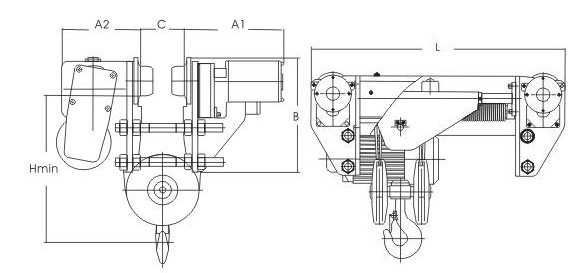

Low clearance steel wire rope electric hoist parameters:

model	Lifting capacity(t)	Increase speed（m/min）	running speed (m/min)	Work level	Pulley ratio	Increase motor power(kw)	c		a1	a2	b	hmin	s	l					n.w(kg)
model	Lifting capacity(t)	Increase speed（m/min）	running speed (m/min)	Work level	Pulley ratio	Increase motor power(kw)	h	i	a1	a2	b	hmin	s	6h	9h	12h	18h	24h	n.w(kg)
sha2	1.6	8.0/1.2	15.8/5	m5	2/1	2.5/0.37	100-500	94-180	378	297	430	917	0.0198h	805	925	1040	1258	1497	320
sha2	3.2	4.0/0.6	15.8/5	m5	4/1	2.5/0.37	100-500	94-180	378	297	430	960	0.0198h	1040	1258	1497			326
sha3	2.5	8.0/1.2	15.8/5	m5	2/1	4.9/0.8	116-450	116-180	400	329	525	1014	0.0212h	823	950	1077	1331	1575	450
sha3	5	4.0/0.6	15.8/5	m5	4/1	4.9/0.8	116-450	116-180	400	329	525	872	0.0212h	1077	1331	1576			470
sha4	6.3	10/1.6	15.6/5	m4	2/1	12.5/2.0	142-500	142-500	475	458	688	888	0.0192h	918	1038	1152	1381	1612	470
sha4	12.5	5.0/0.8	15.6/5	m4	4/1	12.5/2.0	142-500	142-500	475	458	688	897	0.0192h	1150	1381	1612			1200

Advantages

Factory direct supply

Integrating research and development, manufacturing, sales, installation, and service, we are equipped with complete production facilities and innovative domestic and international equipment as well as detection methods to ensure that our production processes and products meet high standards.

Products and services

Our diversified product line meets the needs of various industries. With high efficiency, low energy consumption, light weight, and low noise, our products help customers improve production efficiency and reduce operational energy costs. Additionally, we provide one-stop services including industrial automatic control system and device technology transfer, as well as steel structure engineering design and construction.

R&D TEAM

The company possesses technical research and manufacturing capabilities, continuously driving product innovation and technological upgrading. We have gathered a team of industry elites who are committed to the research and innovation of cranes, pioneering the industry, and solving customer challenges. Adhering to the service philosophy of daily improvement, weekly iteration, monthly upgrading, and annual refreshment, we continuously enhance the competitiveness and market adaptability of our products.

after-sale service

We provide installation and commissioning services to ensure that the equipment meets installation standards and operational norms. Regular maintenance and repair services are also offered to ensure the normal operation of the equipment and extend its service life. Our comprehensive after-sales technical support team is available to answer customer inquiries, provide solutions, and ensure smooth problem-solving for our clients.

Application

Metallurgical industry

Port terminal

water power

Fabrication & Assembly

petrochemical industry
