The LDY electric single beam crane (for lifting molten metal) is a product developed in accordance with the relevant provisions of the Notice on Relevant Opinions on the Rectification of Metallurgical Cranes issued by the Quality Inspection Office [2007] No. 375, the Notice on Relevant Issues Concerning the Special Rectification of Pressure Pipeline Components and Cranes issued by the Quality Inspection Office [2008] No. 347, and the TSGQ0002-2008 Safety Technical Supervision Regulations for Cranes - Bridge Cranes. It is a special single beam crane specifically designed for lifting molten metal in the metallurgical industry.

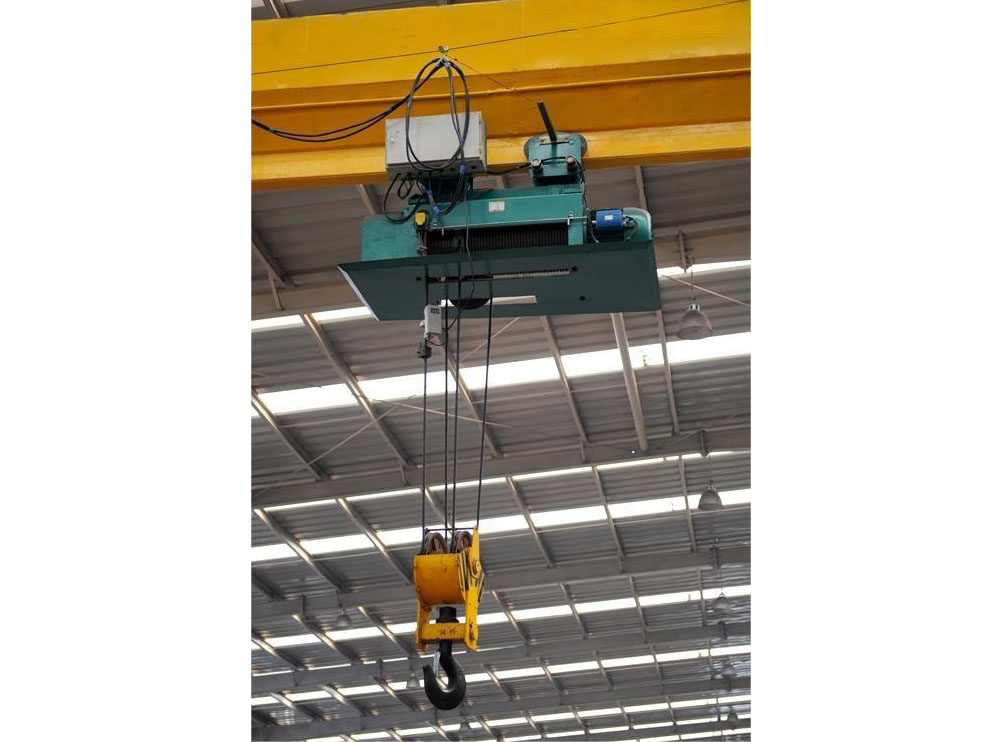

LDY electric single beam crane (for lifting molten metal) (hereinafter referred to as crane) is a bridge type crane installed on an elevated track and running above the track. It is a crane used for lifting molten metal using a metallurgical electric hoist as the lifting mechanism. The rated lifting capacity is not more than 10t, and the working level of the electric hoist is not less than M6. It is a lifting equipment that allows the molten metal package hanging on the crane hook to achieve vertical lifting and horizontal movement in space.
Its retrieval device is a hook.
